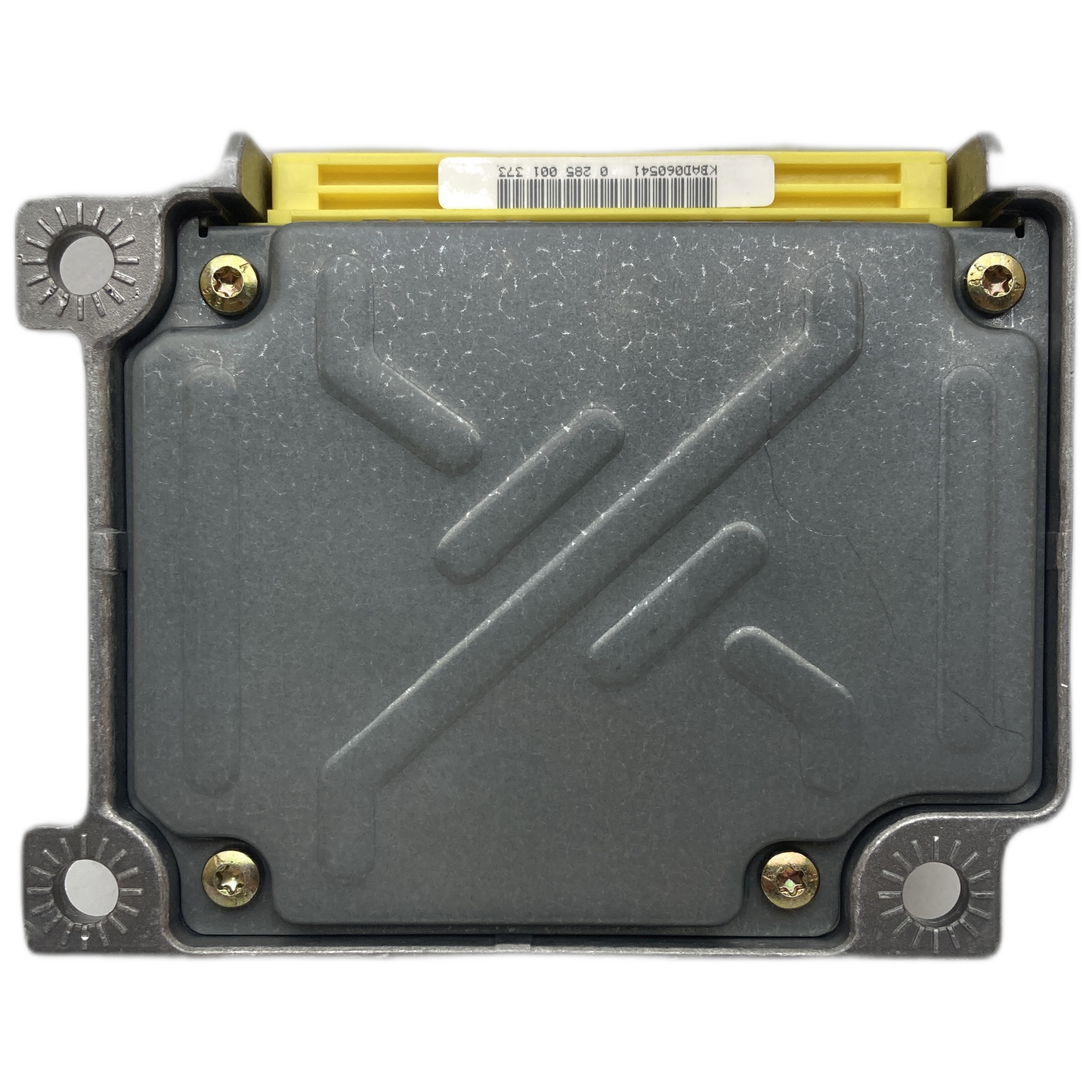

Mercedes-Benz CLK C209 Coupé airbag control unit repair

What is a Mercedes-Benz CLK C209 Coupé airbag control unit?

The Mercedes-Benz CLK C209 Coupé airbag control unit is the central safety unit that precisely activates all occupant restraint systems, such as airbags and belt tensioners, in the event of an accident. It continuously monitors sensor data and stores important crash information, thus ensuring the proper functioning and safety of the entire airbag system.

This essential module, often called the airbag ECU, processes signals from various sensors to precisely determine the time, severity, and direction of impact. From this, it derives a graduated deployment strategy for the installed airbags and seatbelt pretensioners.

After an accident, crash data is stored in the control unit for analysis and must be professionally deleted before the vehicle can be put back into operation.

Why is the Mercedes-Benz CLK C209 Coupé airbag control unit defective?

A Mercedes-Benz CLK C209 Coupé airbag control unit may be defective because crash data was permanently stored after an accident, requiring repair and reinitialization. Internal circuit faults, software problems, or external influences such as water damage can also cause this critical safety electronics to fail.

Common causes of failure are internal electronic defects that require repair. This can be indicated by the airbag warning light illuminating or by a lack of communication with diagnostic devices.

Storing crash data is another typical source of error. The control unit is then blocked and must be reset or repaired to become fully functional again. A defective control unit poses a significant safety risk.

Common error codes for Mercedes-Benz CLK C209 Coupé airbag control unit repair

A defective Mercedes-Benz CLK C209 Coupé airbag control unit will display specific error codes that indicate problems with communication, internal control, or configuration. These codes are crucial for a precise diagnosis and subsequent repair in the workshop.

• B1000 → Control unit communication error → Cause: No or faulty communication between the airbag ECU and the diagnostic device.
• B2D92 → Control unit N2/7 faulty → Cause: Internal defect or malfunction of the airbag control unit (N2/7).
• 9263 → Error stored, reference to airbag control unit → Cause: Incorrect airbag configuration or initialization problems in the control unit.
• 9283 → Error stored, reference to airbag control unit → Cause: Inconsistency in the airbag configuration, possibly after replacement or coding.

These specific error codes help the workshop accurately diagnose the problem. A professional diagnosis is essential for successfully repairing the airbag control unit in the Mercedes-Benz CLK C209 Coupé.

It is important to note that these codes primarily affect the control unit itself and not other components such as crash sensors or seat belt pretensioners.

What part numbers are available for the Mercedes-Benz CLK C209 Coupé airbag control unit repair?

For Mercedes-Benz CLK C209 Coupé airbag control unit repairs, accurate part number verification is crucial. Only with the correct OEM numbers can full compatibility and safety of the airbag system be ensured, thus avoiding malfunctions and additional costs.

• A2038207385 / 2038207385 (Mercedes-Benz OEM) – Primary reference for the original airbag control unit.
• 0285001881 (Bosch OEM supplier) – Bosch part number that identifies the original equipment as a supplier.
• 0018209726 / 001820972600 (Mercedes-Benz OEM Repair Number) – OEM number specifically relevant for repair and replacement.
• 2038206485 (alternative Mercedes-Benz OEM number) – Another original Mercedes part number compatible with the CLK C209.

Using the correct OEM part number is paramount for a successful repair and restoring vehicle safety. Always ensure complete part number matching when repairing the Mercedes-Benz CLK C209 Coupé airbag control unit.
